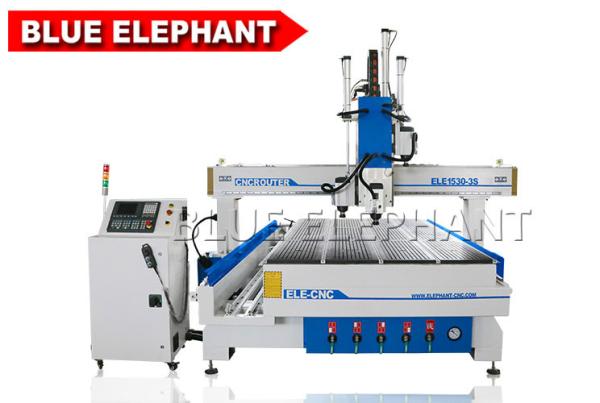

Pneumatic system Multi - Head CNC Router , cnc wood router automatic 3d with 4 axis rotary 1530

  • 1
  • 2

Brand Name : BLUE ELEPHANT

Model Number : ELE1530

Certification : CE, ISO, SGS, BV, TUV

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : US $18,000 - 21,000 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 15-20 working days

Packaging Details : Standard marine export plywood case

Control system : SYNTEC 6MB control system

Spindle : 4.5kw HSD air cooling spindle * 3 sets

Motor : 850w Japan YASKAWA servo motor

Driver : 850w Japan YASKAWA servo motor driver

Inverter : 5.5kw E type Taiwan DELTA Inverter

Table surface : New type thicker and bigger heavy duty welded frame and gantry

Contact Now

Pneumatic system cnc multi head router , cnc wood router automatic 3d , atc cnc router with 4 axis rotary 1530

Introduction of cnc multi head router:

  • New type thicker and heavy duty frame and gantry,high precision,more stable
  • Three heads,do different works one by one,like simple ATC cnc machine
  • With 200mm rotary for cylinder processing,It's very popular in wood industry

Features of cnc multi head router:

  • 1500*3000*200mm effective working area
  • Original Italy HSD 4.5KW ATC air cooling spindle
  • Taiwan 5.5kw DELTA inverter
  • Japan YASKAWA 850W servo motor and drivers
  • Taiwan SYNTEC control system 6MB model
  • Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel, All axis with Taiwan HIWIN #20 Linear guide
  • French Schneider safety switch;
  • Vacuum and T-slot working table
  • Japan OMRON limit switch for X, Y, Z axis
  • Highly flexible towline, fire-resistant double-sheathed Shanghai Gardiff cable
  • Type 3 or Artcam or Ucancam software for free;
  • 200mm Rotary

Parameters of cnc multi head router:

Description Parameter
X,Y,Z Working Area 1500x3000x200mm
Table Surface T-slot & vacumm working Table
Frame Welded Structure
X, Y Structure #20 Tiwan HINWIN linear guide rail,helical rack gear
Z Structure #20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw
Max. Power Consumption (Without Spindle)6Kw
Spindle Power 4.5 KW Italy HSD air cooling spindle for all heads
Spindle Speed 0-18000RPM
Drive Motors 850w Japan YASKAWA servo motor and driver
Working Voltage AC380V/50Hz,3PH (Option: 220V)
Operating System SYNTEC 6MB control system
Collet ER32
X,Y Resolution <0.01mm
Software Compatibility Type3/UcancameV9 Software
Running Environment Temperature 0 - 45 Centigrade
Rotary device diameters: 200mm

PS:All the working area and specifications can be customized according to your requests.

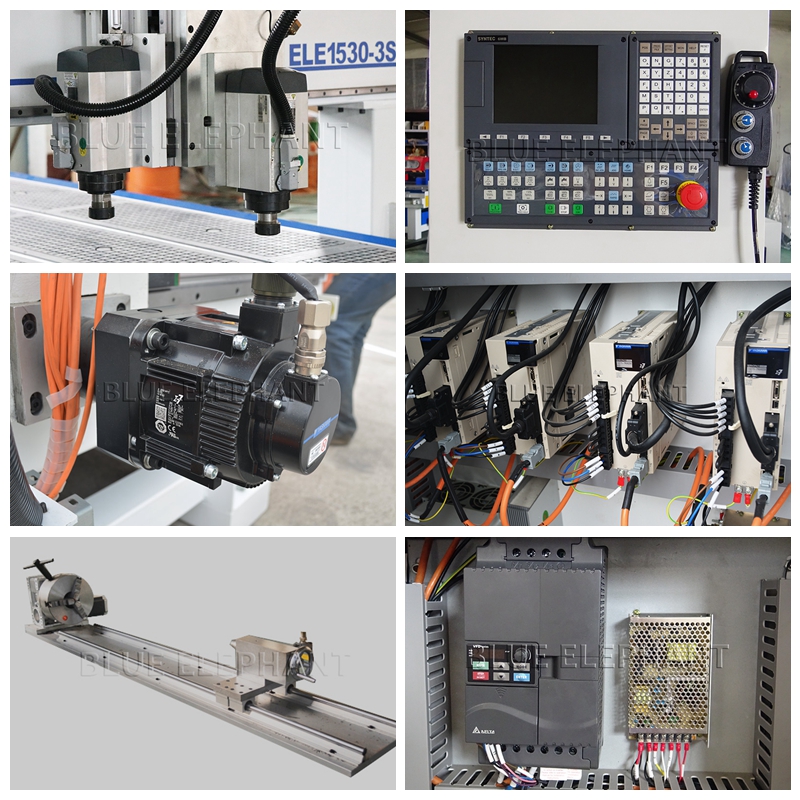

Product Details of cnc multi head router:

Pneumatic system Multi - Head CNC Router , cnc wood router automatic 3d with 4 axis rotary 1530
